Single Girder Overhead Crane

Single girder overhead crane configuration is made up of a single bridge girder, two end carriages and a hoist with trolley,  which runs along the bottom flange of the bridge girder between the end carriages.

• It is widely used in industrial factory, warehouse, workshop, stock ground, workstation factory, goods yard etc.

• It looks like bridge, because both ends of girder are on the tall concrete column and metal support structure.

• It consists of metal structure, crane travelling mechanism, lifting mechanism, safety protection and operation.







>Single girder overhead crane features：

1). Easy installation and maintenance ;
2). Widely used in different places for hoisting such as factories,warehouses and material yards etc ;
3). Reasonable structure, strong bearing capacity ;
4). Low noise, soft starting and stopping ;
5). Safe and reliable operation ;
6). Low cost maintenance, long working life ;
7). Wheels, wire rope drum, gears, couplings are processed by CNC machine center, TOP quality control ;
8). Heavy duty slipring motor,Or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth running ;
9). Schneider main electric parts are used for durable and safe operation ;
10). Prohibited to use in the environment with inflammable, explosive and corrosive media.

>Single girder overhead crane parameters：

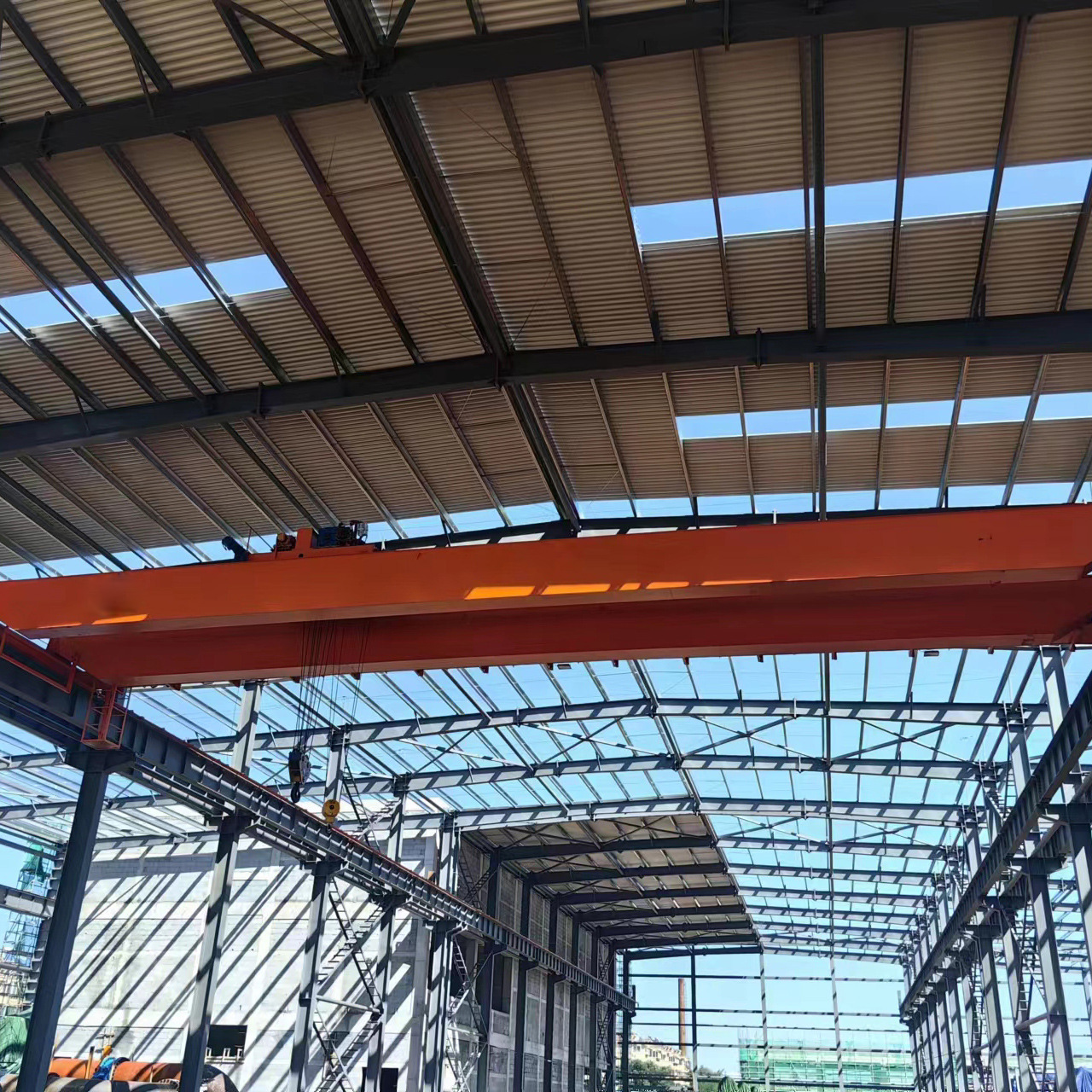

Single girder overhead crane application：
